송풍기 날개, 벨마우스 제작

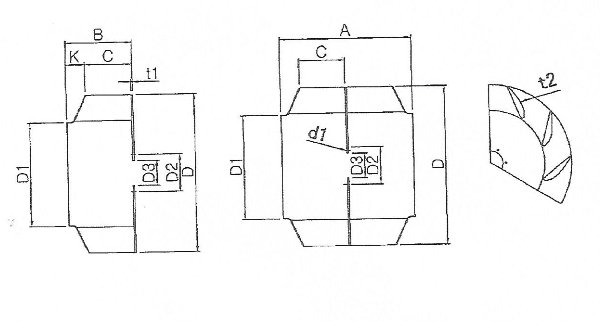

AIR FOIL DIMENSIONS
FAN |
A |
B |
C |
D |
D1 |
D2 |
D3 |
Qea |
d1 |
t1 |
t2 |
2 |
255.5 |
130 |
95 |
340 |
236 |
120 |
80 |
6 |
8.5 |
3.2 |
1.6 |
2.5 |
295.5 |
150 |
100 |
379 |
260 |
120 |
80 |
6 |
8.5 |
3.2 |
1.6 |
3 |
345.5 |
175 |
120 |
460 |
315 |
180 |
140 |
8 |
10.5 |
3.2 |
1.6 |
3.5 |
425.5 |
215 |
150 |
553 |
380 |
180 |
140 |
8 |
10.5 |
4.5 |
1.6 |
4 |
475.5 |
240 |
165 |
615 |
425 |
220 |
170 |
10 |
10.5 |
4.5 |
1.6 |
4.5 |
525.5 |
265 |
180 |
683 |
470 |
220 |
170 |
10 |
10.5 |
4.5 |
1.6 |
5 |
574 |
290 |
190 |
750 |
520 |
270 |
210 |
12 |
12.5 |
6 |
1.6 |
5.5 |
654 |
330 |
225 |
830 |
575 |
270 |
210 |
12 |
12.5 |
6 |
1.6 |
6 |
714 |
360 |
245 |
905 |
633 |
300 |
250 |
12 |
12.5 |
6 |
1.6 |
6.5 |
764 |
385 |
283 |
995 |
700 |
300 |
250 |
12 |
12.5 |
6 |
1.6 |
7 |
814 |
410 |
290 |
1100 |
770 |
340 |
280 |
14 |
12.5 |
6 |
2.0 |
8 |
924 |
465 |
320 |
1215 |
850 |
340 |
280 |
14 |
14.5 |
6 |
2.0 |
9 |
1081 |
545 |
404 |
1340 |
950 |
400 |
350 |
16 |
17 |
9 |
2.3 |
